Product Overview:
The FHLT15 Electric High-Lift Pallet Truck is engineered for efficient material handling in warehouses, workshops, and logistics hubs. It features a low-profile tri-stage cylinder for stable lifting to 800mm, integrated monolithic forks for durability, and operator-friendly controls for safe, easy operation.
Characteristics of the FHLT15 Electric High-Lift Pallet Truck:
- Integrated Monolithic Fork Design: The load forks are constructed as a single, unitized component from thickened high-carbon steel through a monolithic stamping process, achieving a reinforced 4mm-thick structure designed for long-term durability and load stability.

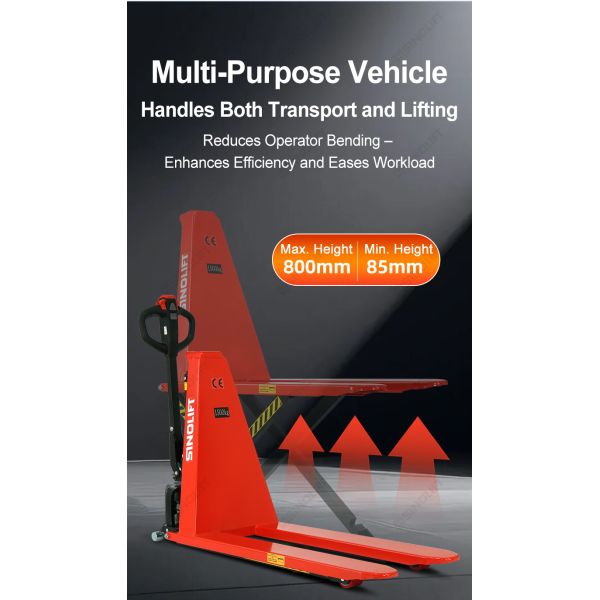

- Tri-Stage Hydraulic Lifting Mechanism: Incorporates a compact tri-stage hydraulic cylinder that provides a maximum lifting height of 800mm while maintaining a low initial fork height, allowing for controlled vertical adjustment of palletized loads.

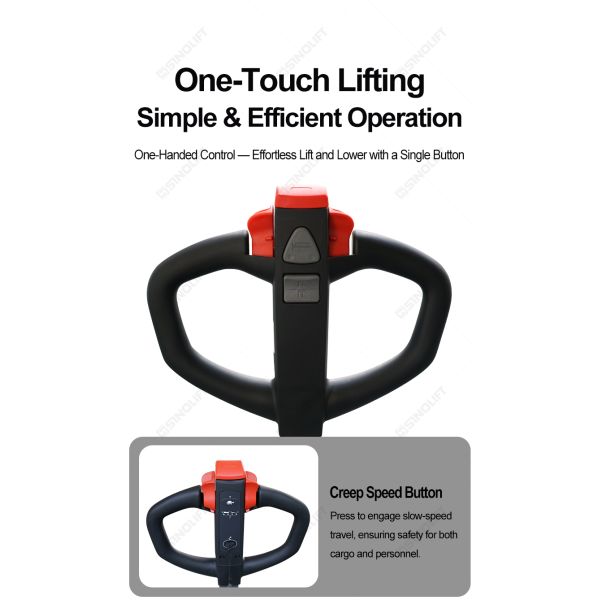

- Operator-Focused Control System: Includes a one-button lift/lower function for simplified operation and a dedicated creep-speed mode for precise, slow movement during placement or in confined spaces.
- Enhanced Structural and Component Durability: Features a reinforced frame with thickened steel plates, a sealed and reinforced hydraulic cylinder, and heavy-duty PU-core load casters paired with zinc-plated auxiliary casters for sustained performance under load.

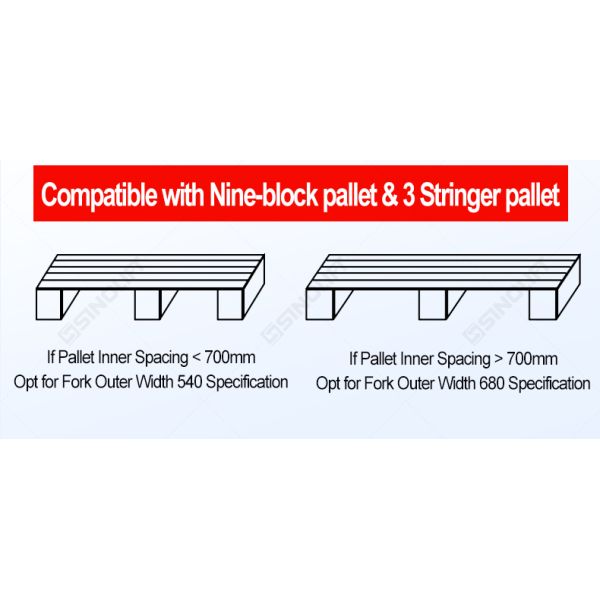

- Adaptability to Common Industrial Environments: Engineered for material handling in settings such as workshops, warehouses, and logistics hubs, with compatibility for standard single-face nine-leg and "Chuan"-type pallets within specified width dimensions.
Application Scenarios:
This electric high-lift pallet truck is designed for efficient material handling across various industrial and logistics settings.
Core Functions:
Loading and unloading of palletized goods in confined spaces
Order picking and stock transfer within warehouses and distribution centers
Medium-distance transport in production workshops and assembly lines
Port operations and printing facility logistics require frequent lifting
Typical Environments:
Manufacturing plants and industrial workshops
Warehousing and logistics hubs
Freight terminals and port handling areas
Printing facilities and packaging centers
Product Specifications:
| FHLT15 Specifications |
| Rated Load |
kg |
1500 |
| Lowest Fork Height |
mm |
85 |
| Highest Fork Height |
mm |
800 |
| Maximum Lifting Travel |
mm |
>715 |
| Outer Fork Width |
mm |
540/680 |
| Inner Fork Width |
mm |
220/360 |
| Fork Dimensions |
mm |
1150 |
| Single Fork Width |
mm |
160 |
| Fork Thickness |
mm |
50 |
| Overall Length |
mm |
1700 |
| Overall Height |
mm |
1680 |
| Load Wheel Dimensions |
mm |
Φ80*70 |
| Drive Wheel Dimensions |
mm |
Φ210 |
| Travel Motor |
V/kW |
24V/0.75 |
| Minimum Turning Diameter |
mm |
1260 |
| Lifting Motor |
V/kW |
24V/0.8 |
| Wheel Material |
- |
PU |
| Lithium Battery Capacity |
V/Ah |
24V/20A |
| Net Weight |
Kg |
160/165 |
|
|
